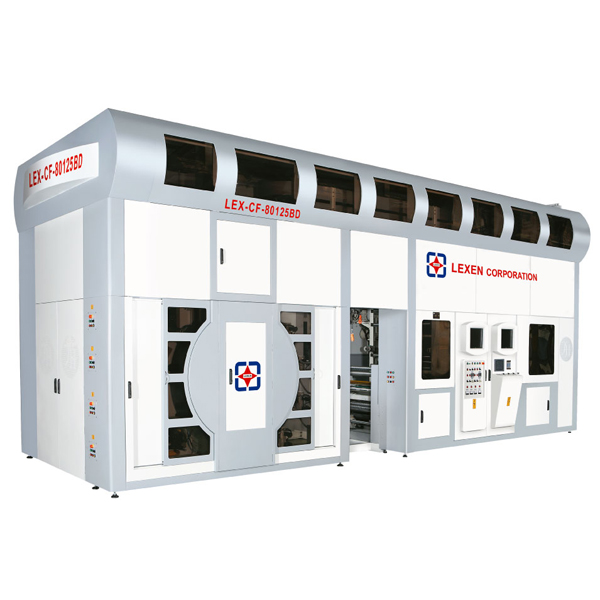

CF-BD series - Doctor Blade type 8 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)
| MODEL | PRINTING WIDTH | FILM WIDTH | REPEAT LENGTH |
MACHINE SPEED | PRINTING SPEED |
M/C DIMENSION L x W x H |
| LEX-CF-8060BD | 600 mm | 620 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
| LEX-CF-8080BD | 800 mm | 820 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
| LEX-CF-80100BD | 1000 mm | 1020 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
| LEX-CF-80125BD | 1250 mm | 1270 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
| LEX-CF-80150BD | 1500 mm | 1520 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
| LEX-CF-80160BD | 1600 mm | 1620 mm | 13” - 35” | 350 M / min | 20~300 M / min | 10992 x 2410 x 4470 mm |
Standard Features:
- FC-25 cast iron machine frame, vibration-free at high speed operation.
- Main motor by using servo motor (YASKAWA brand) and driven by timing belt, quiet and precise.
- Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
- PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
- Printing roller, in-feed and out-feed are driven by servo motor (YASKAWA brand).
- Use electronic type push-button device to adjust the registration with forward and backward adjustment.
- Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
- Electronic type automatic edge position control (EPC) on unwind.
- Electric control by using PLC (MITSUBISHI brand) with full color touch-screen human machine interface (HMI).
- Single-chip advanced print inspection system (SONY brand) with full color LCD monitor.
- All rotating rollers are treated with dynamic balance correct.
- Line speed controlled by harmony synchronous driving system.
- Dual wall type central impression drum, chrome plated with accurate grind, equipped with water or air cooling circulation system.
- High precision doctor blade chamber system with ceramic anilox roller, suitable for printing superfine quality.Automatic ink circulation and quick washing system for optional equipment to short ink exchange and cleaning cycle.
- Pre-register for forward and backward printing registration.
- PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
- Turret type non-stop auto changing system for optional equipment to save material change time.
- Single chip advanced printing video inspection system ("Sony" or "E+L" brand) with full color LCD monitor for register setting.
- Line speed controlled by harmony synchronous driving system with high accurate auto tension control system.
- Perfect drying loop design with exhaust system.
- Electronic type auto edge position control (EPC) on unwind unit.
- Fast change-over sleeve type printing roller for optional equipment to quick printing job exchange.
