AD Series

2 COLORS IN-LINE SERIES

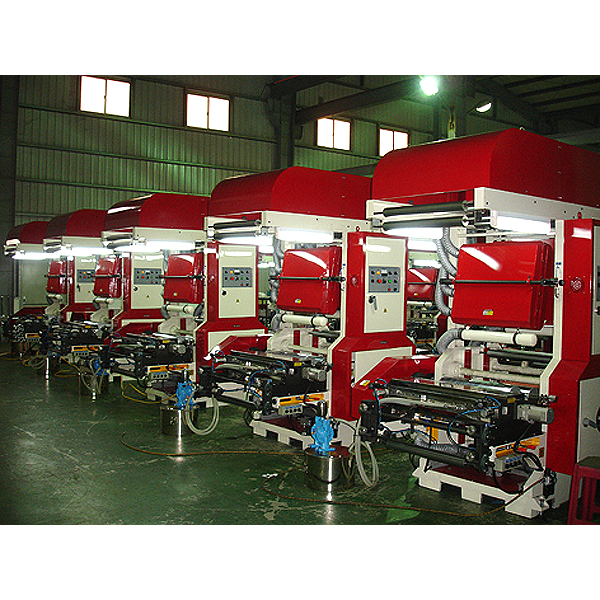

AD series – Doctor Blade type 2COLORS FLEXOGRAPHIC PRINTING MACHINE
MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH		 PRINTING
SPEED		 M/C DIMENSION
L x W x H
LEX-2060AD 600 mm 620 mm 13” - 35” 20~120 M / min 2400 x 1450 x 2485 mm
LEX -2080AD 800 mm 820 mm 13” - 35” 20~120 M / min 2400 x 1650 x 2485 mm
LEX -20100AD 1000 mm 1020 mm 13” - 35” 20~120 M / min 2400 x 1850 x 2485 mm
LEX -20125AD 1250 mm 1270 mm 13” - 35” 20~120 M / min 2400 x 2100 x 2485 mm
LEX -20150AD 1500 mm 1520 mm 13” - 35” 20~110 M / min 2400 x 2350 x 2485 mm
LEX -20160AD 1600 mm 1620 mm 13” - 35” 20~110 M / min 2400 x 2450 x 2485 mm
Standard Features:
  • FC-25 cast iron machine frame, vibration-free at high speed operation.
  • Driven by timing belt, quiet and precise.
  • Simple register device for accurate printing quality, each color adjusted separately during operation.
  • The perfect facility of drying system can be operated at high speed and be available for water-base ink.
  • Economical type doctor blade chamber system with ceramic anilox roller, which is able to advance the printing quality and printing speed.
